Name：EDJ Fire Pump System Electric Diesel Jockey Pump End Suction Centrifugal Pump

Time： 2025/12/8
View：

Introduction

EDJ Fire Pump System Electric Diesel Jockey Pump End Suction Centrifugal Pump

📌 Product Overview:

The EDJ End Suction Fire Pump System is a high-performance firefighting solution that integrates Electric, Diesel, and Jockey pumps in a single, efficient package. Designed in high quality standards, this system ensures reliable operation across a wide range of critical fire protection applications.

Ideal for commercial buildings, warehouses, factories, airports, hospitals, and high-rise residential complexes, the EDJ series offers unmatched flexibility, efficiency, and system redundancy — ensuring uninterrupted protection even in power outages or pressure drops.

-When pressure drops, the jockey pump automatically starts to stabilize the system.

-If pressure continues to drop, the main electric pump activates.

-In case of power failure, the diesel pump takes over to ensure continued operation.

-This layered response guarantees constant water supply under any emergency.

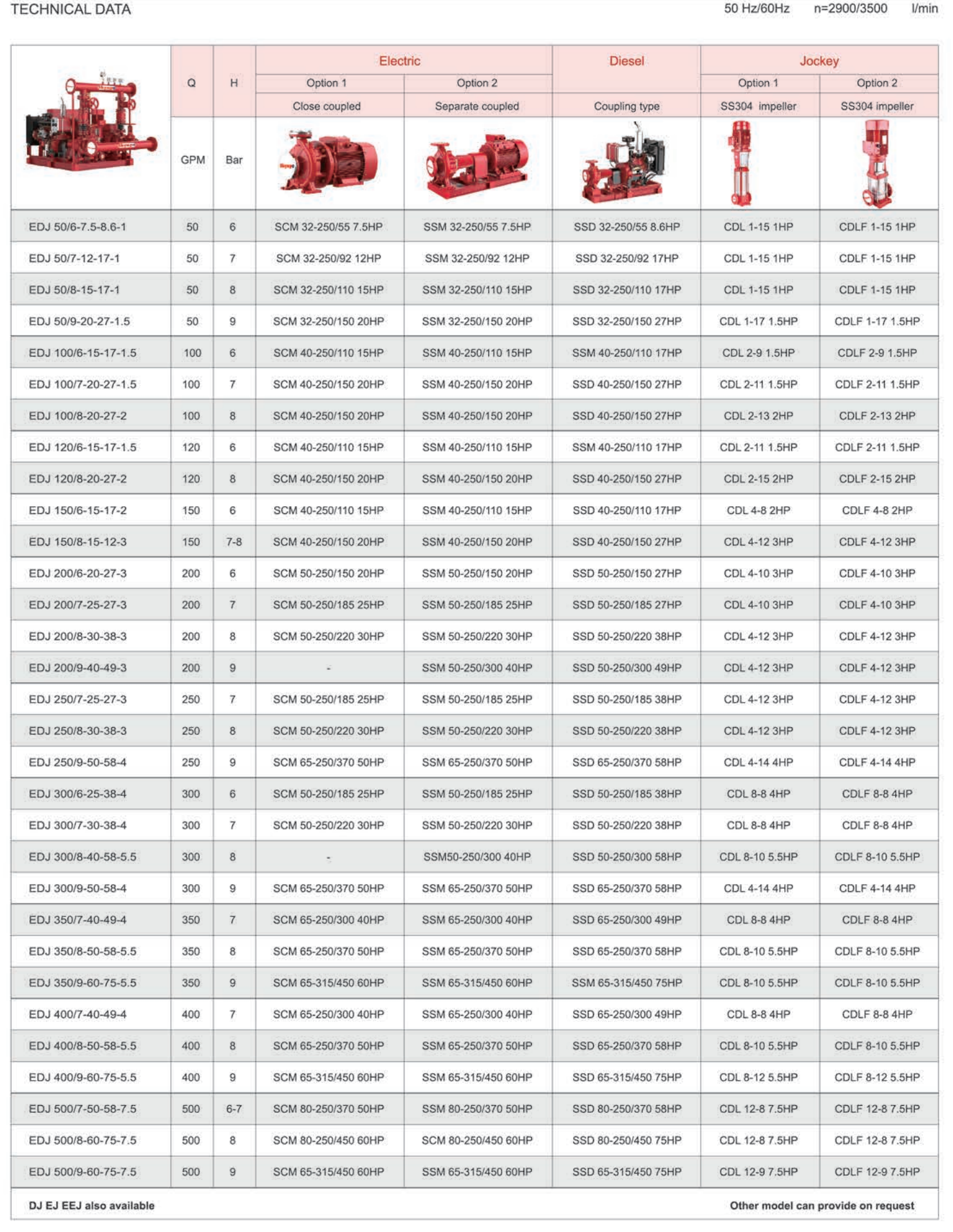

⚙️ Technical Specifications:

-Max Flow: 50-20000 GPM

-Max Head: 10-600 m

🛠️ Customized for Your Needs:

Available in end suction, split case, vertical turbine, and multistage desi

Material options: Cast iron, stainless steel, bronze etc

Optional configurations: 3-in-1 controllers, separate control cabinets, valves, and pressure tanks

Customizable based on flow, head, material, and installation method

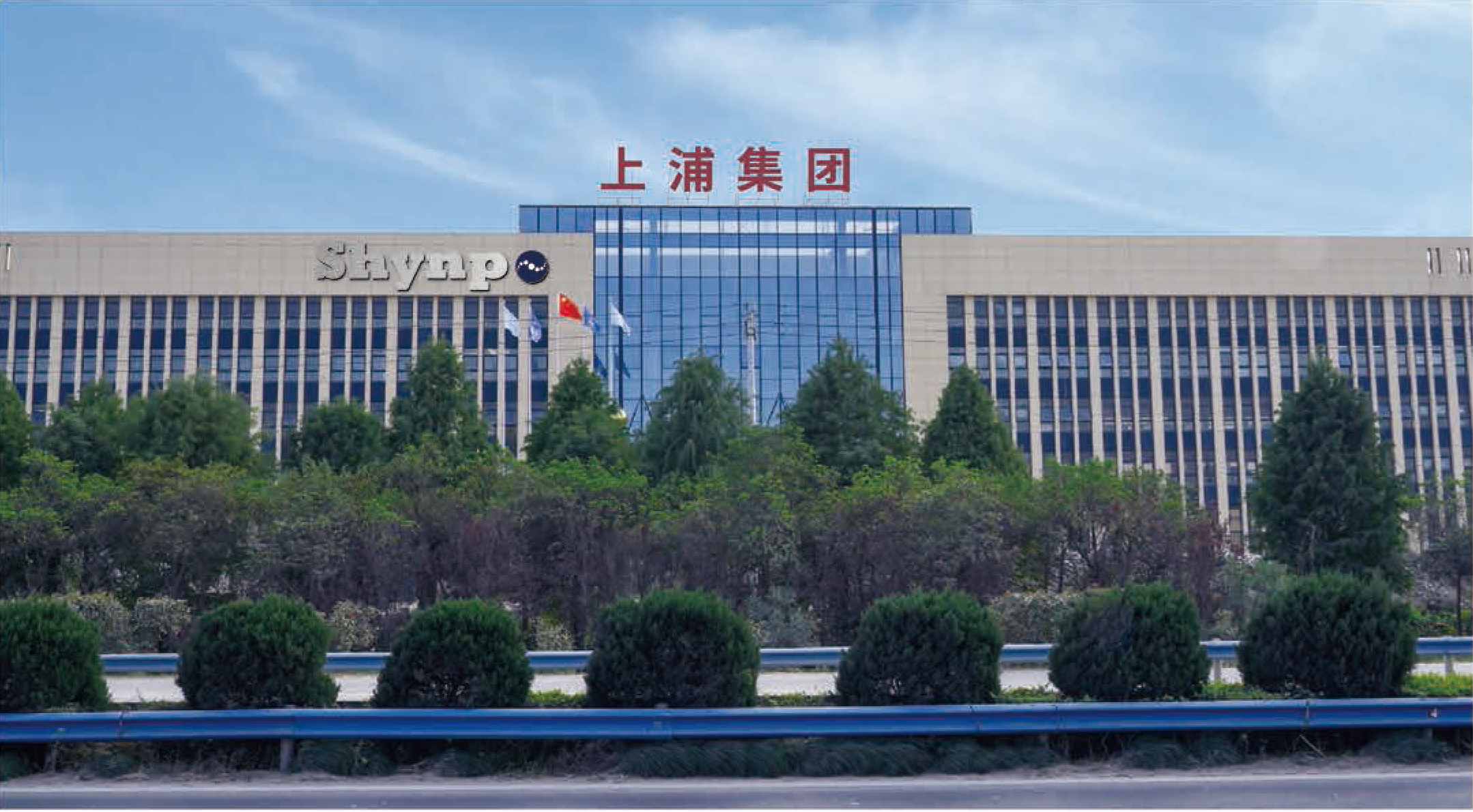

Taizhou Shynpo Factory&Trading Co., Ltd.

Shynpo is the subsidiary of Shanghai Pump Manufacture Co.,Ltd. , which is the leading supplier in fluid industry since 1930 .By combining innovative technology,excellent quality and one-stop service, we offer the intelligen-tized solution for customers.

The enterprise is a share-holding company re-organized from Shanghai Pump Factory which was established in 1930. The group company is specialized in manufacturing all kinds of pump products and motors. And as the vice-chairman of China Pump Association, our company has become a famous manufacturer in various areas of pump and motor products.

Our products include

● fire fighting pumps

● booster pumps

● motors

● pumps for power stations, energy supply, civil water supply and drainage, sewagetreatment, industrial, Metallurgy, petroleum, chemical, irrigation construction, and high buildings, etc.

We also provide the service for:

● Improvement, updating, or replacement of pumps

● technology consultant for pumps

We are always adhering to the intent of creating the maximum value for customers,implementing the strategy of upgrade pump quality levels , depending on continuous innovated technology, advanced operationprinciple and talented team, we supply safe, reliable and high efficient pumps to both domestic and oversea customers

❓ Frequently Asked Questions (FAQ)

🏢 1. Where can this fire pump system be used?

Our EDJ fire pump systems are ideal for commercial buildings, industrial facilities, warehouses, hospitals, airports, and residential high-rise projects — anywhere fire protection is critical.

📏 2. Can I customize the pump set according to my project?

Yes. We offer customized fire pump sets, including flow/head requirements, materials (cast iron, stainless steel, bronze), motor type, and control panels (3-in-1 or separate cabinets).

🌍 3. Do you ship internationally?

Yes! We have exported to over 60 countries, including the Middle East, Southeast Asia, Africa, South America, and Europe. We offer FOB, CIF, and EXW terms.

🧰 4. Do you offer installation or technical support?

We offer technical consultation, remote guidance, and spare parts supply. On-site service can be arranged for large projects through our authorized partners.

🚚 5. What is the lead time for production and shipping?

Standard systems: 30-45 working days

Shipping time depends on your port and method.

💳 6. What are your payment terms?

Our usual terms are:

30% deposit, 70% balance before shipment

T/T (bank transfer) preferred

LC at sight is negotiable for large orders
